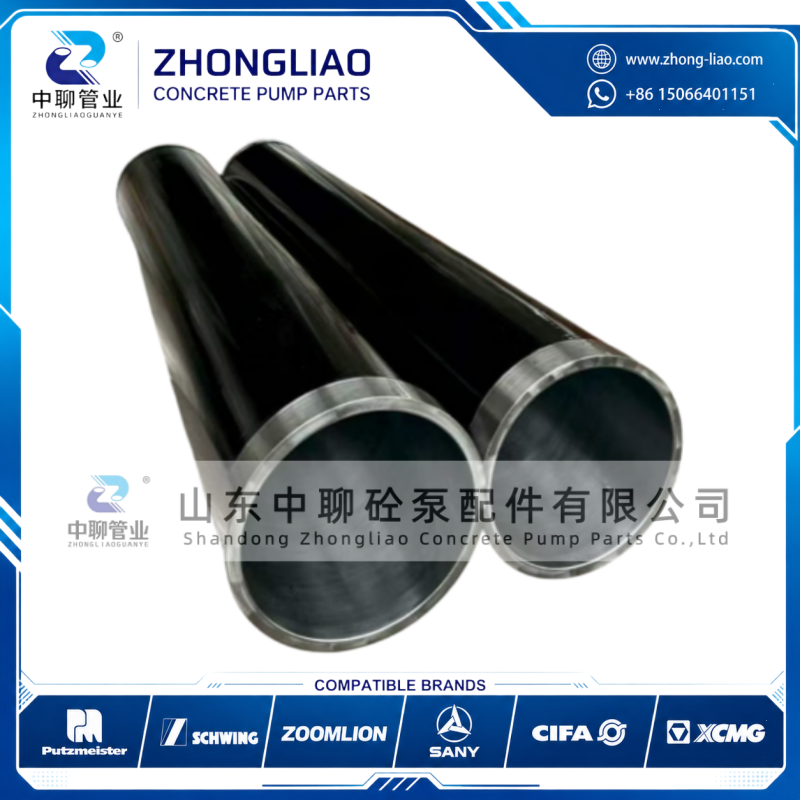

Concrete Pump Delivery Cylinder for Schwing

Shandong Zhongliao supplies aftermarket concrete pump delivery cylinders for compatible Schwing concrete pumping systems.

The delivery cylinder is also commonly known as a material cylinder, concrete cylinder or concrete pumping cylinder. It is an important component of the pumping unit and works together with the concrete pump piston during repeated suction and discharge strokes.

During operation, the concrete pump piston moves back and forth inside the delivery cylinder. Accurate dimensions and a properly finished inner surface help support stable piston movement, reliable sealing and efficient concrete delivery.

Different Schwing concrete pump models may use different cylinder diameters, lengths, strokes, end structures, mounting dimensions and original part numbers. Therefore, the correct specification should be confirmed before production.

Available Cylinder Diameters

• Ø125 mm
• Ø150 mm
• Ø180 mm
• Ø200 mm
• Ø250 mm

Multiple cylinder lengths and customized installation dimensions are available according to the concrete pump model and confirmed technical requirements.

Common Schwing Specification References

The above specifications are general equipment references only. The final product must be confirmed according to the complete machine model, original part number, actual measurements or technical drawing.

Product Features

• Designed for compatible Schwing concrete pumping systems
• Available in Ø125, Ø150, Ø180, Ø200 and Ø250 mm
• Multiple cylinder lengths and strokes available
• Manufactured according to confirmed dimensions or drawings
• Accurate inner diameter and installation dimensions
• Wear-resistant inner surface treatment
• Smooth operation with the matched concrete pump piston
• Suitable for replacement, repair and routine maintenance
• Customized end structures and mounting dimensions available
• Customized product marking and packaging available
• Specification confirmation before production

Technical Specifications

Product Name: Concrete Pump Delivery Cylinder

Alternative Names: Material Cylinder / Concrete Cylinder / Concrete Pumping Cylinder

Product Type: Aftermarket Replacement Part

Compatible Equipment: Selected Schwing Concrete Pumps

Available Inner Diameters: Ø125 / Ø150 / Ø180 / Ø200 / Ø250 mm

Cylinder Length: According to the concrete pump model or confirmed drawing

Cylinder Stroke: According to the original cylinder or pumping unit specification

Material: Steel

Inner Surface: Wear-resistant surface treatment according to the confirmed specification

End Structure: According to the original cylinder or technical drawing

Installation Dimensions: According to the machine model, original product or drawing

Application: Concrete pump pumping unit maintenance and replacement

Customization: Diameter, length, stroke, wall thickness, end structure, installation dimensions, marking and packaging

Quality Control

Before shipment, the delivery cylinder is checked for:

• Inner diameter
• Overall length
• Inner surface condition
• Cylinder straightness
• End structure
• Mounting dimensions
• Overall appearance
• Product quantity and marking

Specification confirmation before production helps ensure that the delivery cylinder matches the concrete pump model, concrete pump piston and installation position.

Applications

The delivery cylinders are suitable for:

• Compatible Schwing truck-mounted concrete pumps
• Compatible Schwing stationary concrete pumps
• Compatible Schwing trailer concrete pumps
• Replacement of worn or damaged material cylinders
• Concrete pump repair and maintenance
• Concrete pumping contractors
• Concrete pump spare-parts distributors
• Concrete pump service companies

How to Confirm the Correct Delivery Cylinder

Please provide as much of the following information as possible:

1. Concrete pump brand and complete machine model
2. Pumping unit model, if available
3. Original part number, if available
4. Cylinder inner diameter
5. Overall cylinder length
6. Effective cylinder stroke
7. Cylinder wall thickness
8. Clear photos of both cylinder ends
9. Mounting and installation dimensions
10. Technical drawing or original sample, if available
11. Required quantity

Providing only the cylinder diameter may not be sufficient. Different Schwing concrete pump models can use cylinders with the same inner diameter but different lengths, strokes, end structures and installation dimensions.

Ordering Information

Before production, our team will confirm the important dimensions and application information with you.

When the original part number is unavailable, clear product photos, actual measurements and technical drawings can help us identify and confirm the required delivery cylinder.

Please send us the Schwing concrete pump model, cylinder diameter, overall length, product photos and required quantity. We will review the information and provide the corresponding quotation.

Product Image Notice

Product images are for reference only.

The actual appearance, inner diameter, overall length, stroke, end structure and mounting dimensions may vary according to the Schwing concrete pump model and confirmed delivery-cylinder specification.

Packaging

Each delivery cylinder is properly protected and packed to help reduce surface damage, deformation and corrosion during storage and transportation.

Export-standard packaging and customized packaging are available according to product size, order quantity and transportation requirements.

Compatibility Notice

Schwing is a trademark of its respective owner.

Brand names, machine models and original part numbers are used only for product identification and compatibility reference. Unless explicitly stated otherwise, the products supplied are aftermarket replacement parts and are not original Schwing parts.
